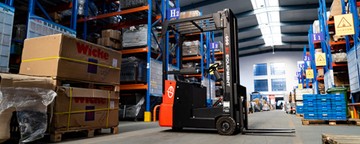

DSC04287

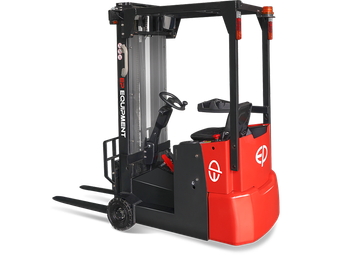

EFS101

990KG Electric Counterbalance Forklift

About The EFS101

The EFS101 electric counterbalance forklift from EP Equipment is specially designed to meet light to medium duty needs in limited spaces. The lightweighted and compact design offers better maneuverability for cargo lifts and mezzanine usage. This truck is equipped with a 24V/220Ah long-lasting lead-acid battery which can meet daily operation. The EFS101 is absolutely able to practice light to medium stacking tasks in different working conditions.
Electric Forklift | EFS101 Product Introduction Video

Application

EFS101 can cover 80% of customers’ handling applications in the most economical way. In addition to daily working routine, operators can take advantages of its compact size to cover handling needs in narrow space. With its light self-service weight 1520kg, the EFS101 is a reliable tool to handle materials in cargo lifts and on mezzanines. It can also adapt to uneven surfaces thanks to its high ground clearance.

  • EFS101

Features


The EFS101 features compact chassis, which is significantly smaller than ones with the same tonnage in the industry. It is optimized for the flexibility in narrow space thanks to its short turning radius 1278mm. In addition, operators can take advantages of its light weight 1520kg to cover cargo lift and mezzanine usage.

Features


The EFS101 features compact chassis, which is significantly smaller than ones with the same tonnage in the industry. It is optimized for the flexibility in narrow space thanks to its short turning radius 1278mm. In addition, operators can take advantages of its light weight 1520kg to cover cargo lift and mezzanine usage.

Features

  • The EFS101 ensures higher ground clearance compared to regular forklifts with same tonnage and can r.....
  • The EFS101 is equipped with a 24V-25A integrated charger, which offers operators convenience and fle.....
  • The EFS101 uses market-proven spare parts, which promise safety and reliability. It comes with a 24V.....
  • Operators can drive the EFS101 comfortably due to the ergonomic foot pedal design. The EFS101 also c.....

กลุ่มผลิตภัณฑ์

1

ES10-10ES

CAPACITY
1000 KG
BATTERY
80V/205AH (Li-Ion)
SELF WEIGHT (INCLUDING BATTERY)
535KG
Ground clearance, center of wheelbase
30MM
TURNING RADIUS
1408MM
STEERING SYSTEM
Mechanical
BRAKING SYSTEM
Electromagnetic
2

EFS101

CAPACITY
990 KG
BATTERY
24V/220AH AGM
SELF WEIGHT (INCLUDING BATTERY)
1520KG
Ground clearance, center of wheelbase
98MM
TURNING RADIUS
1278MM
STEERING SYSTEM
Electronic
BRAKING SYSTEM
Electromagnetic

3

CPD15LE

CAPACITY
1500 KG
BATTERY
48V/150AH (Li-Ion)
SELF WEIGHT (INCLUDING BATTERY)
2600KG
Ground clearance, center of wheelbase
78MM
TURNING RADIUS
1535MM
STEERING SYSTEM
Hydraulic
BRAKING SYSTEM
Hydraulic/Mechanical
